The Fyreye ultra-violet flam detector is particularly suited to applications where flames can be expected to develop initially rather than smoke. This is typically due to the nature of the materials being protected for instance camera film, computer, audio & video tapes or disks.

The detector is for indoor use only and should not be exposed to spurious sources of UV, such as sparks, uncovered halogen lights, lightening, etc. as these may trigger a false alarm.

Due to the operational nature of flame detectors it is generally recommended to fit just one detector per zone.

• Low profile shape
• The detector is solar blind and incorporates an electronic filter to eliminate unwanted alarms from naturally occurring phenomena
• Fast response time
• High immunity to electrical noise & RF interference

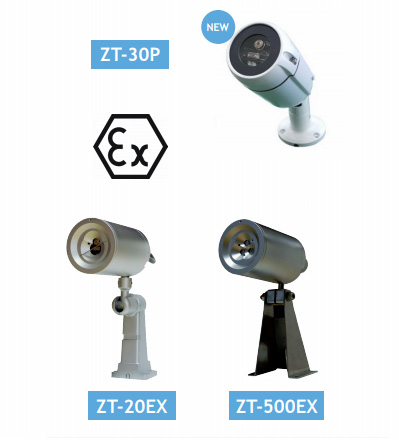

The new range of UV/IR and Triple IR Flame Detectors detect fuel and gas fires at long distances with the highest immunity to false alarms.

The ZT-30P and the ZT-20EX can detect a 0.1m2 gasoline pan fire at 30m in less than 5 seconds. The ZT-500EX can detect the same fire at 65m in less than 5 seconds.

New features include RS484/RS232 compatabilities for digital communications; lower power requirements; and a compact, lighter design.

ZT-20EX and ZT-500EX series are approved to ATEX by DNV for explosion-proof.

• UV/IR Spectrum - for medium distance detection and high false alarm immunity (ZT-30P & ZT-20EX)
• Triple IR Spectrum - for longer distance detection and high false alarm immunity (ZT-500EX only)
• Compact and lightweight design ZT-20EX & ZT-500EX Enclosure options:
  - Aluminium
  - Stainless (ST 316L) for offshore facilities
• User Selectable (Senitivity/Functions)
• Multiple output options
  - Relays for Alarm and Fault
  - 0-20mA (stepped)
  - RS-485/RS-232 spectrum monitoring
• Lower power requirement (35mA - standby / 75mA - alarm)
• Ex cable gland /2 metre cable assembled & provided for users’ easy installation
• Certifications
  - ATEX approved by DNV for explosion-proof
  - CE marking
